Recon family
Persistent Intelligence Platforms.
Long endurance, precision-guided surveillance systems within modular platform envelopes.

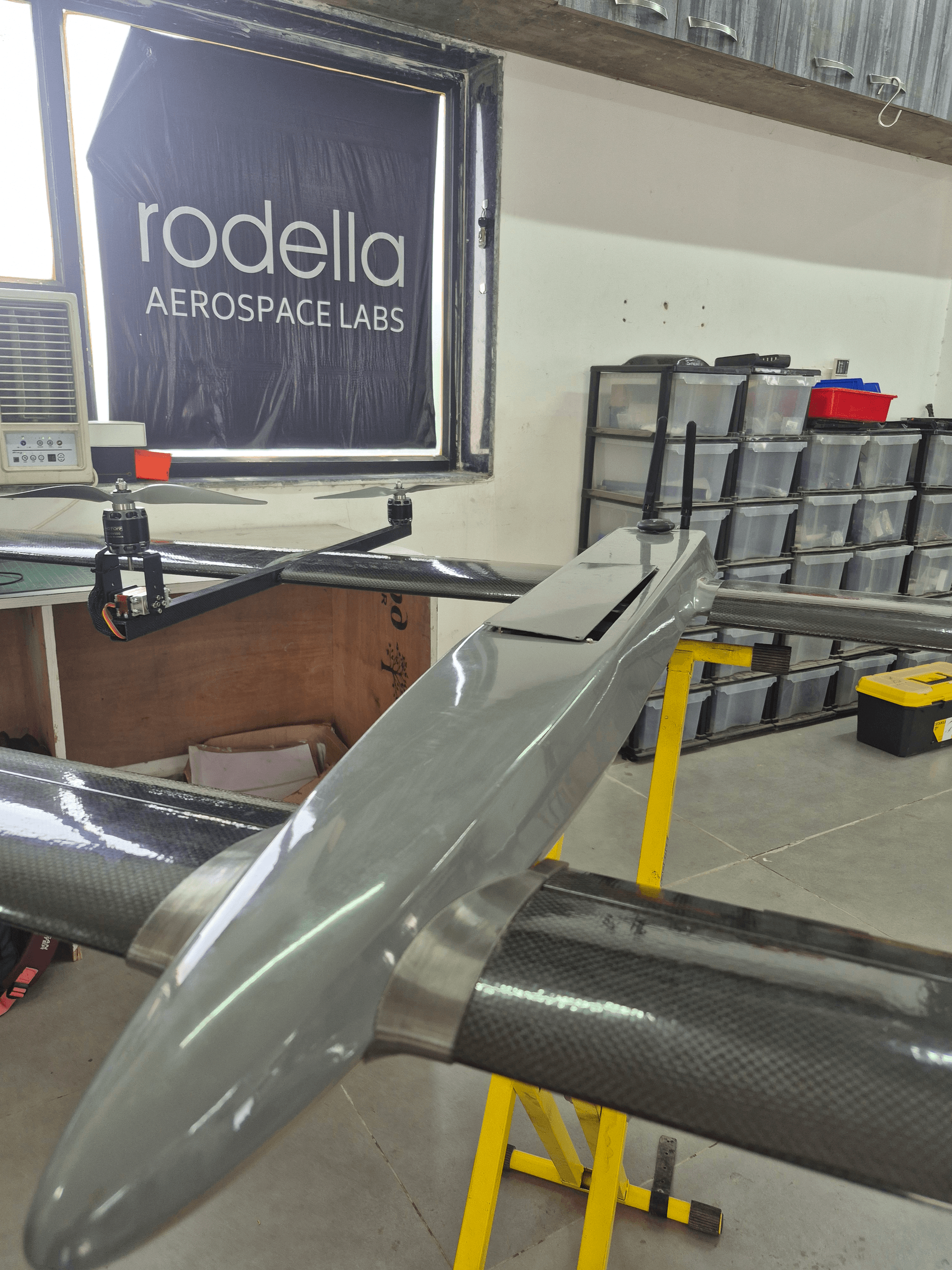

Electric Tilt-Rotor Unmanned Aerial Vehicle
SE-2C
SE-2C is an electric tilt-rotor UAV combining precise vertical access with fixed-wing efficiency.
Specifications
- MTOW6-7 Kgs
- AirframeCarbon-Kevlar Composite
- Power PlantBrushless Electric
- Front PropulsionDual Tilt Rotors
- Range30 Kms
- Endurance120 minutes
- Cruise Speed75 Km/h
- Max Speed100 Km/h
- Operating Altitude500-1000m AGL
- Service Ceiling4500m AMSL
- PayloadsEO/IR
- Wind Resistance12-15 Km/h
Platform details

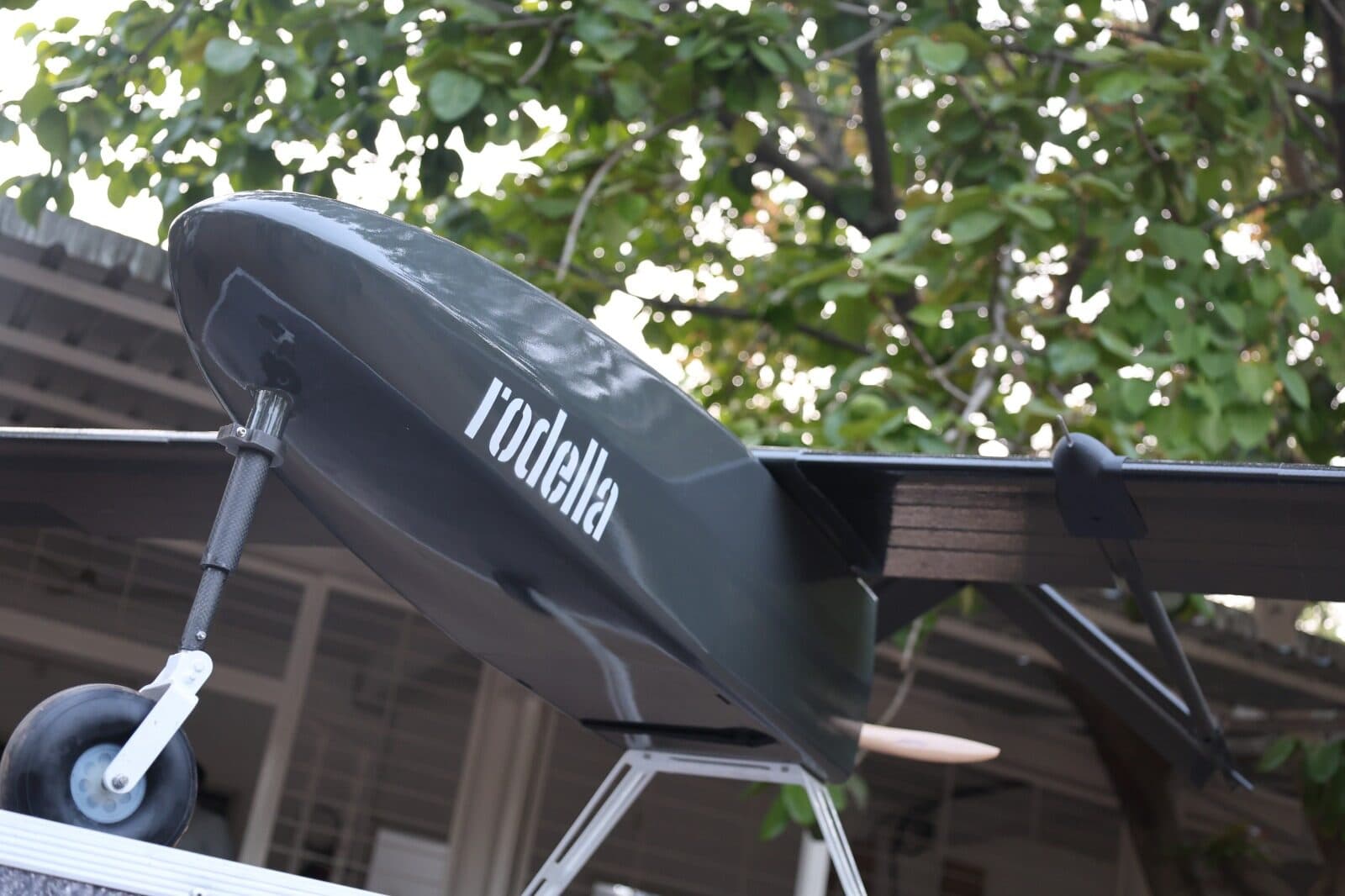

Police Aerial Support System
PASS
Designed for precision, consistency, and scalable performance, PASS delivers unmatched reliability across diverse terrains.
Specifications
- MTOW25 Kg
- Wingspan3 meters
- AirframeHybrid Composites
- Power PlantIC Petrol Engine
- Comm Range200 Kms
- Endurance360 minutes
- Take-off / LandingSTOL
- Cruise Speed90 Km/h
- Max Speed100 Km/h
- Operating Altitude1500m AGL
- Service Ceiling6000m AMSL
- Max Payload8 Kg
- Wind Resistance15–20 Kmph
Platform details

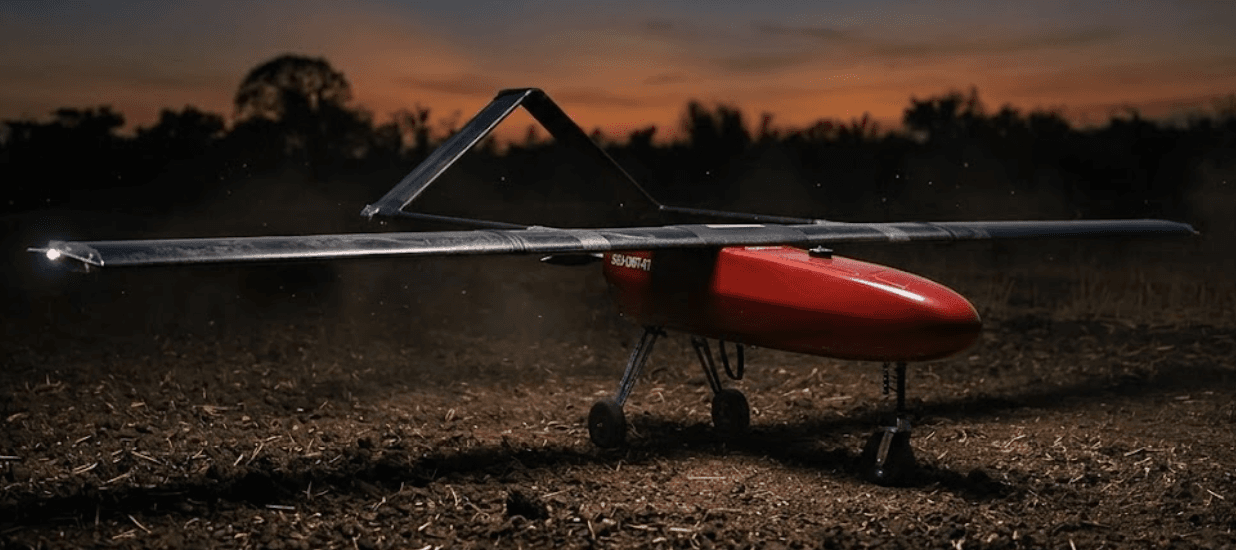

Gasoline powered surveillance aircraft
SG-3
SG-3 is a gasoline-powered fixed-wing platform built for persistent Recon: long loiter, stable EO/IR carriage, and optional comm relay in one airframe.
Specifications
- TypeGasoline powered surveillance aircraft
- All up weight25 Kgs
- Wing span3 m
- Endurance5–6 hrs
- Range200 Kms
- PayloadEO/IR Recon payloads, Comm repeaters
- Cruising speed80 Kmph
Platform details

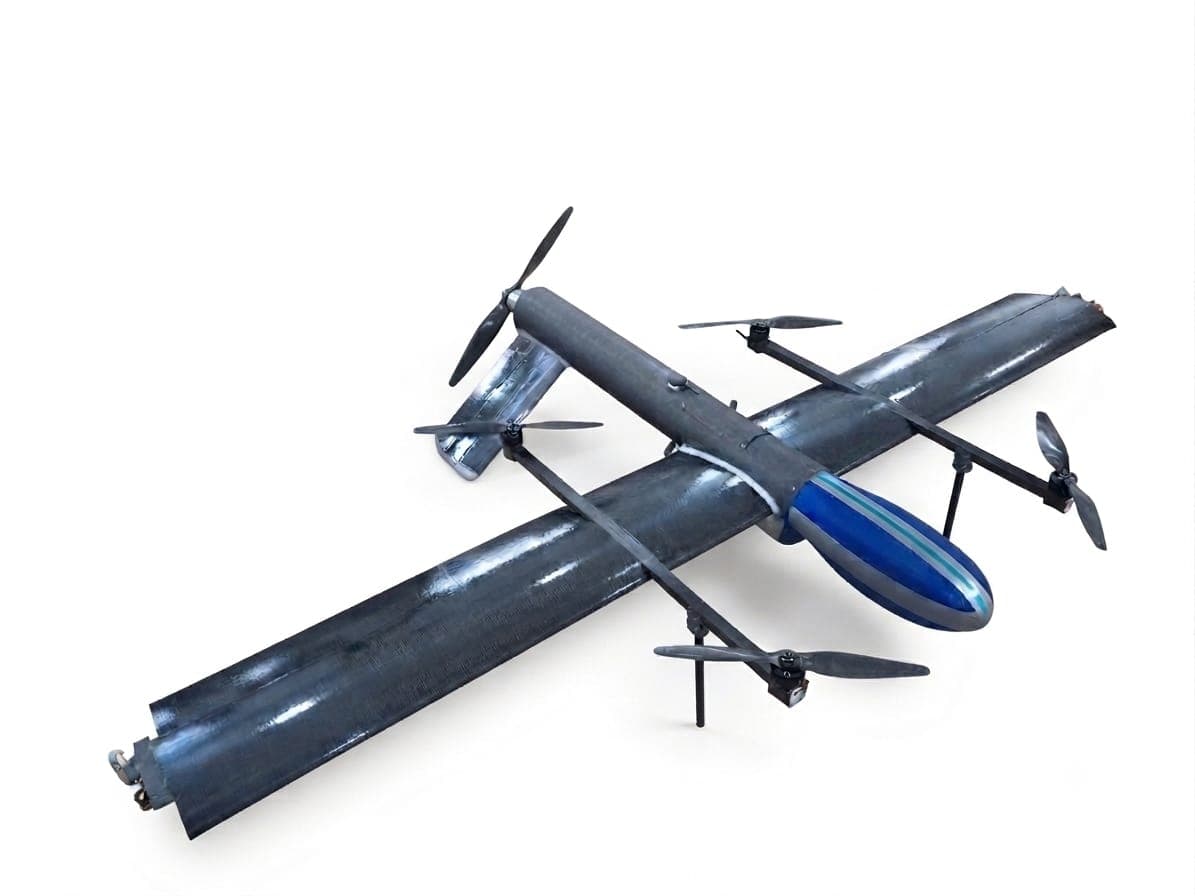

SURVEILLANCE + ORDINANCE DROP
BAAZ 80 Overwatch
A VTOL fixed-wing platform combining persistent aerial surveillance with a payload drop capability.
Specifications
- ConfigurationVTOL Fixed Wing
- Range40 + 40 km
- Drop PayloadUp to 81 mm (3.5 kg)
- Endurance70 min
- Cruise Speed90 kmph
Platform details
Requirements intake
Payload integration, communications, launch and recovery, autonomy and sustainment can be adapted within each platform envelope.
